Is it possible to print halftones from a spot color gradient in Illustrator?

[thalo52]

I have an Illustrator file that has color gradients, from color to transparent. The color in the gradient is a spot color, with opacity from 100% to 0%. When I go to print, and in the Illustrator print dialog box, selecting the Output section shows the spot color and process colors selected to print. When I click print and the PrintFab print preview screen opens the spot color page shows a gradient and not halftone.

I do have single black selected, and all other colors except black turned off.

Is it possible to do what I am trying? I know there are some issues with normal printing gradients with spot colors with normal printing pricesses (not halftone screenprinting films).

[thalo52]

Also this is the first time I have printed films since I upgraded to Win 11 and is version 1.21.

[thalo52]

I have updated to V 1.23b.

I created a test file of 6 squares of a spot color. Each is a different percentage of opacity from 0% to 100%. Test printing there is still no change in achieving halftone.


[zedonet]

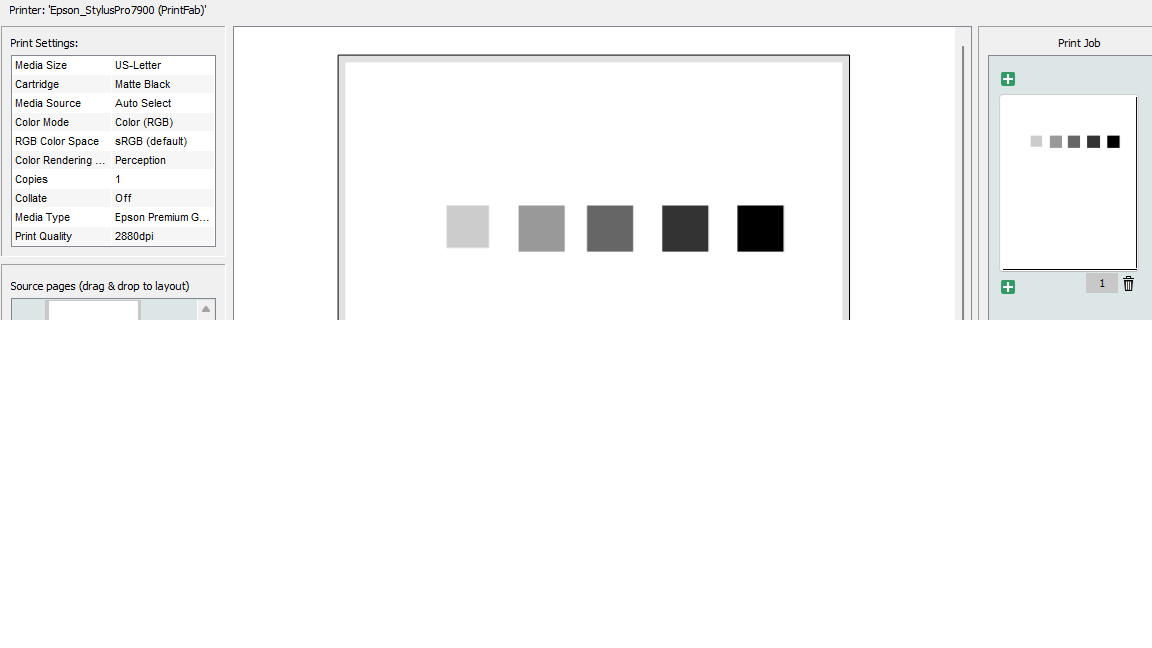

Hello, the PrintFab Preview application doesn't show halftones, you have to actually print it to see the halftone.
The settings made in Illustrator should be respected:


Here is how to configure PrintFab:


[thalo52]

Thanks for the response.

For some reason I thought the preview showed the halftones before printing. I will test to make sure it works as I need.
