Hi on Ubuntu 18.04LTS Mate and TurboPrint 2.46
Had HP D5160 die and replaced with Epxon XP-830. I must be missing some setting as it doesn't print correctly in Inkscape but prints fine using Writer Template from Tips & Tricks Epson XP-800 CD Template thread. In Inkscape to initially align I print small square on plain disk (wipe off and reuse), measure and offset square in Inkscape. Then on another layer have large square size of print area and align it to now aligned small square. Then just turn on layer with large square and center artwork, center and turn off large square layer.
In the Writer template I deleted text and just put a dot and it printed correctly. Noticed the Writer template shows Page Size CD/DVD while the Inkscape shows Paper Size A4.
Another question: If I run past trial period will I be able to still test setup with a watermark or such. In case don't resolve issue by then?
Epson XP-830 Inkscape DVD Not Printing
Epson XP-830 Inkscape DVD Not Printing
- Attachments
-

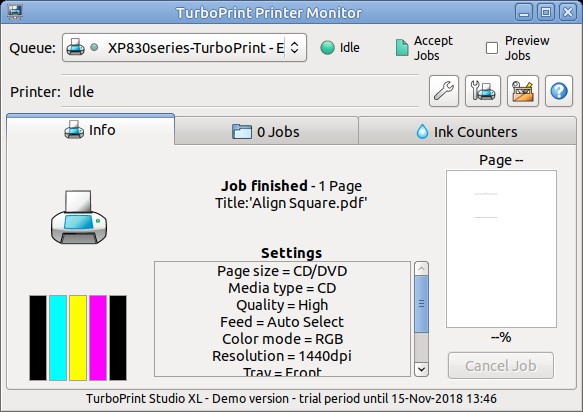

- TurboPrint Printer Monitor LibreOffice Office.jpg (61.63 KiB) Viewed 7115 times
-
- TurboPrint Printer Monitor Inkscape.jpg (63.39 KiB) Viewed 7115 times
-

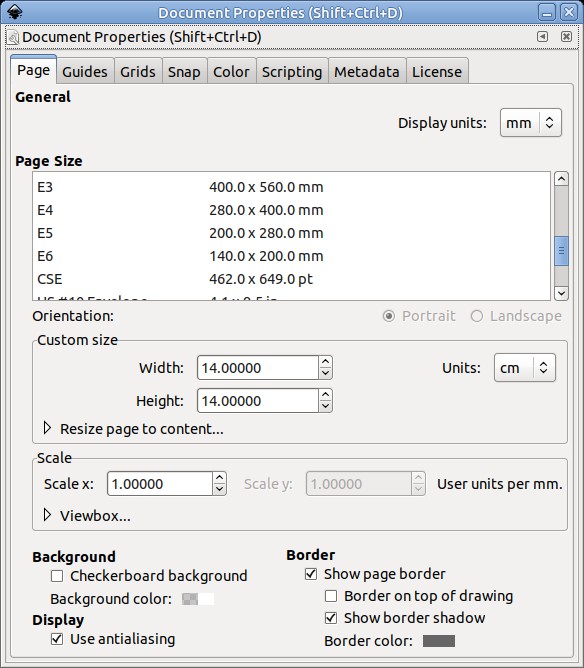

- Inkscape Document Properties.jpg (93.61 KiB) Viewed 7115 times
Re: Epson XP-830 Inkscape DVD Not Printing
Hello,
I just verified the problem - please excuse the late answer.
The problem is that Inkscape doesn't allow to select a page size in its print dialog.
A workaround is to export the document to PDF (dialog "Save as...") and print it from the PDF document viewer which has the same print dialog but allows page size selection.
I hope we can find a better solution in a future TurboPrint release.
I just verified the problem - please excuse the late answer.
The problem is that Inkscape doesn't allow to select a page size in its print dialog.
A workaround is to export the document to PDF (dialog "Save as...") and print it from the PDF document viewer which has the same print dialog but allows page size selection.
I hope we can find a better solution in a future TurboPrint release.
Re: Epson XP-830 Inkscape DVD Not Printing

- Attachments
-

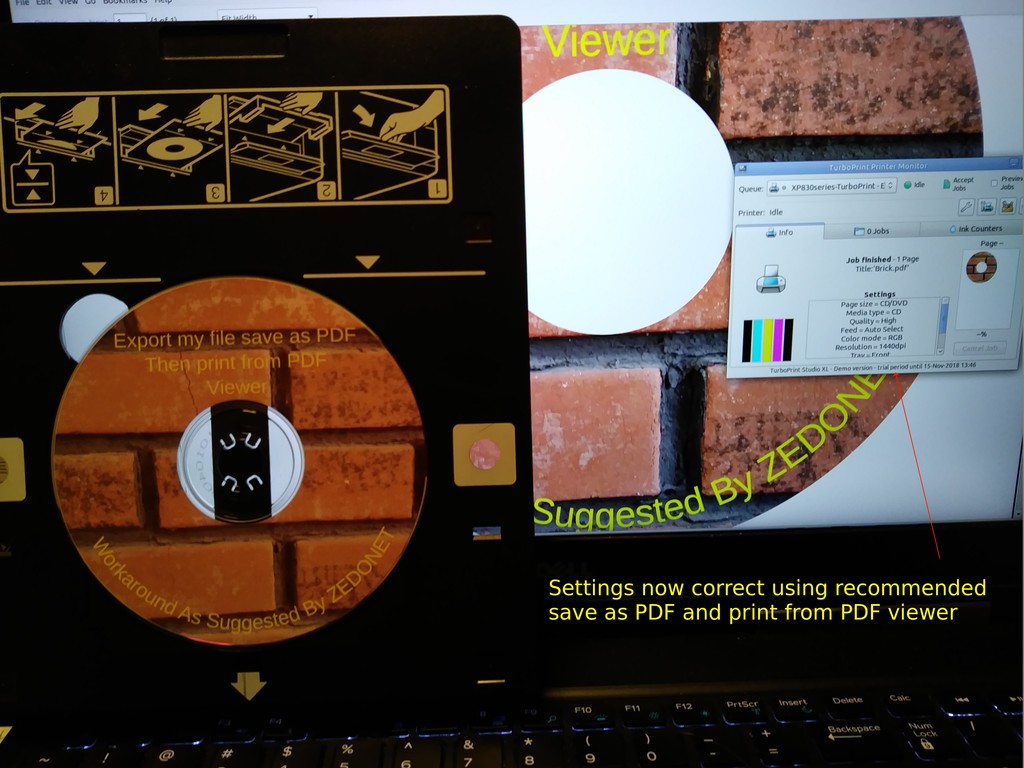

- TP Workaround Works.resized.jpg (153.54 KiB) Viewed 7082 times
-

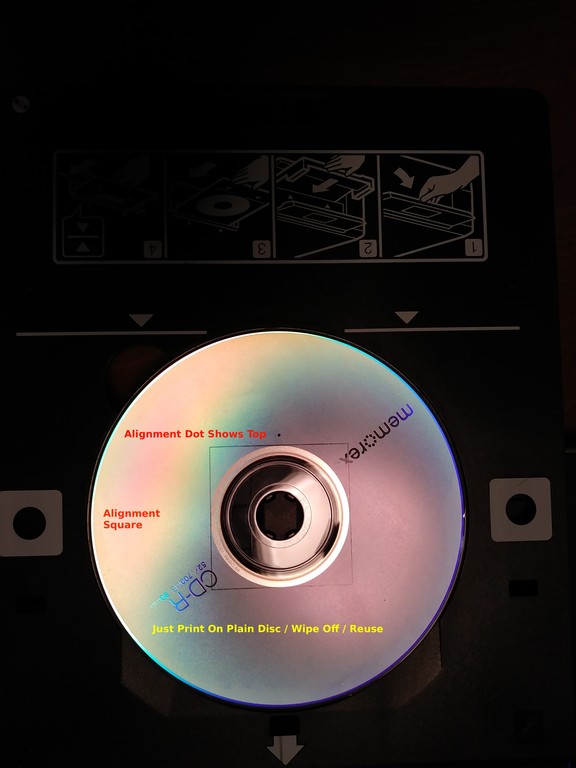

- TP Workaround Align.resized.jpg (53.48 KiB) Viewed 7082 times
-
- OK.jpg (62.16 KiB) Viewed 7082 times
